Aim the beam wrong side-to-side and the teeth come out overlapped — you can't see between them, even though nothing's actually wrong with the teeth. One error, one fix.
~5 min9 cards★ Most-missed on the RHS exam
▶ Watch · 1:01
Watch first — horizontal angulation in about a minute.

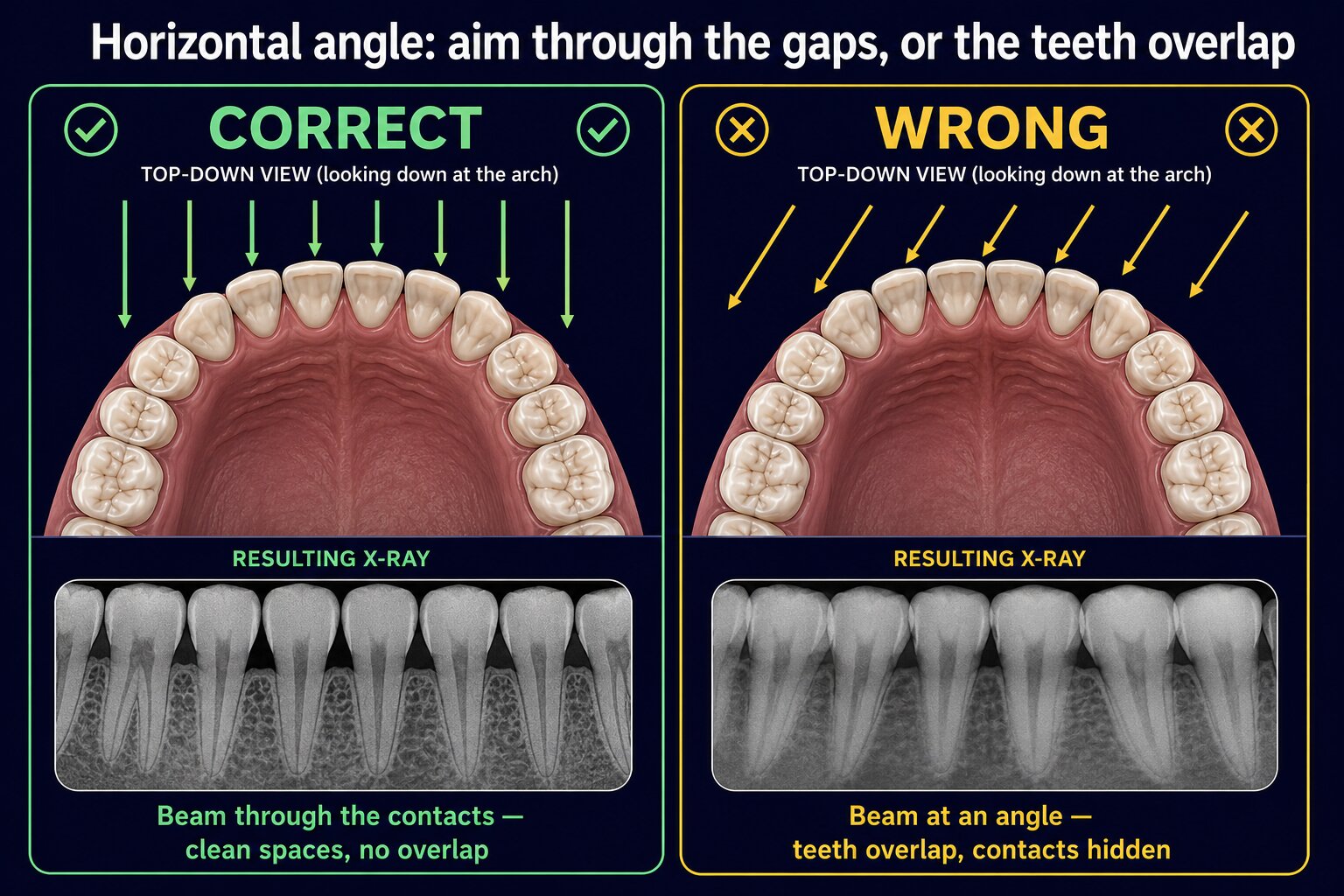

1See the difference
Same teeth, two beam directions.
Looking down at the arch: aim the beam straight through the gaps and the teeth show clean spaces. Aim it at an angle and the teeth overlap — contacts hidden.
Correct
Beam through the contacts
Clean spaces, no overlap
Wrong
Beam at an angle
Teeth overlap, contacts hidden
2The one idea
Fence posts, viewed from the side.
Look straight at a row of fence posts and you see a gap between every one. Step to the side and look down the row at an angle, and the posts bunch together and hide each other. The fence didn't change — only your angle did.
Your teeth sit in a curved row just like that. Beam straight through the gaps → clean spaces. Beam at a side angle → teeth overlap.

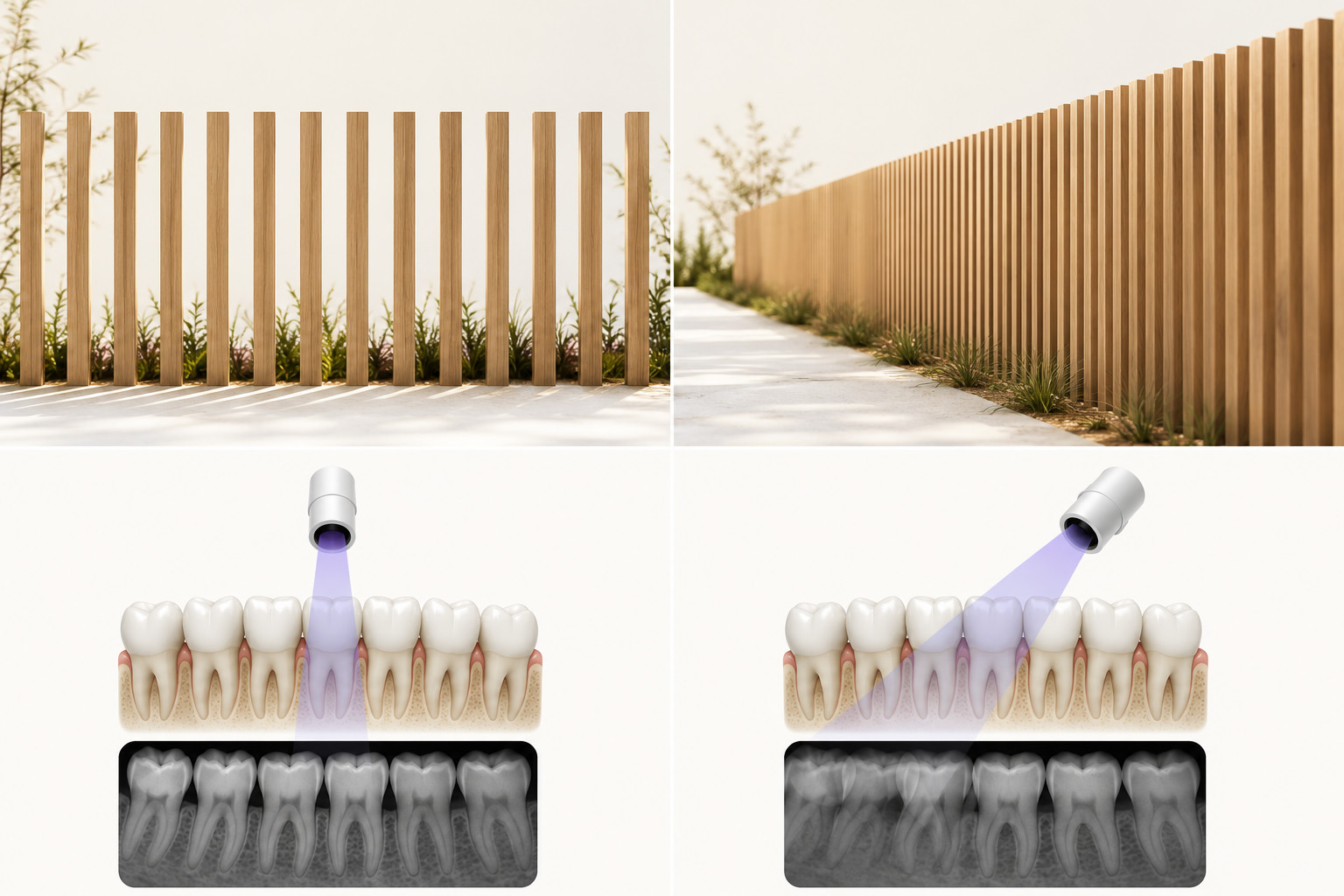

See it in real life
Straight-on: gaps between every post. From an angle: the posts hide each other — same as the teeth below.
3Now the real words
Same idea, dental vocabulary.
Everything in the fence-post picture has a dental name — here's the translation, since these are the exact words the exam uses:
In plain EnglishOn the exam
🥁The row of fence posts
→
The dental archThe curved row your teeth sit in. Because it curves, the beam has to be aimed correctly to "see" between each tooth.your teeth in a curved line
🔦The direction you look from
→
The x-ray beamaimed by the PIDPosition Indicating Device — the cone-shaped tube that points the beam.
↔️Aiming side-to-side
→
Horizontal angulationThe side-to-side (left/right) aim of the beam. "Horizontal" = the sideways direction.the left-right aim of the beam
🪥Posts hiding each other
→
Overlapped contactsWhen the edges of neighboring teeth (the contact areas) project on top of each other, hiding the space between them. The classic horizontal-angulation error.teeth smeared together on the image
4Never mix them up
The letter tells you.
Horizontal = Hiding
Both start with H. Horizontal angulation errors make teeth Hide each other — they overlap. Vertical (the other one) changes length instead: foreshortened or elongated. Different direction, different problem.
🚗
Cars in a parking lot: look straight down the row and you see a gap between each one. Look from the end at an angle and they seem bumper-to-bumper. Fix = look straight through the gaps again — same fix as aiming the beam through the contacts.
5Try it yourself
Aim the beam and watch the contacts.
Top-down view — three teeth in a row, beam coming from above
Teeth from above + beam
Resulting image
aim leftaim right
Beam straight through the contacts → clean gaps between teeth ✓
"can't see between the teeth"→incorrect HORIZONTAL angulation
"how to fix overlap"→aim beam through the contacts
"foreshortened / elongated"→trap! that's VERTICAL, not horizontal
7Check yourself
Bitewing shows the contacts between the premolars overlapped so they can't be evaluated. Caused by incorrect:
Horizontal angulation. Overlap = Horizontal = Hiding. Vertical would cause foreshortening or elongation, not overlap.
7Check yourself
To open overlapped interproximal contacts on a retake, direct the central ray:
Through the contact areas, perpendicular to the arch. Straight through the gaps reopens the contacts — like looking straight down a row of fence posts. (DANB uses both 3- and 4-option items.)
Recap
The whole thing in 4 lines.
✓Teeth sit in a curved row — the beam has to aim through the gaps to see between them.
✓Horizontal angulation = the side-to-side aim of the beam.
✓Aim it wrong → overlapped contacts (Horizontal = Hiding). The only error here.
✓Fix = aim the beam through the contacts. Don't confuse with vertical (length).
One error, one fix — and on test day you'll just know it.
When a question describes overlapped contacts or teeth you can't see between, you'll read it straight off: incorrect horizontal angulation, and the fix is to aim the beam through the contacts. That's mastery, not memorization.
